From REINFORCE to GiGPO : The Evolution of Policy Gradient Methods

The Bias-Variance Tradeoff and Architecture Simplification in LLM Training

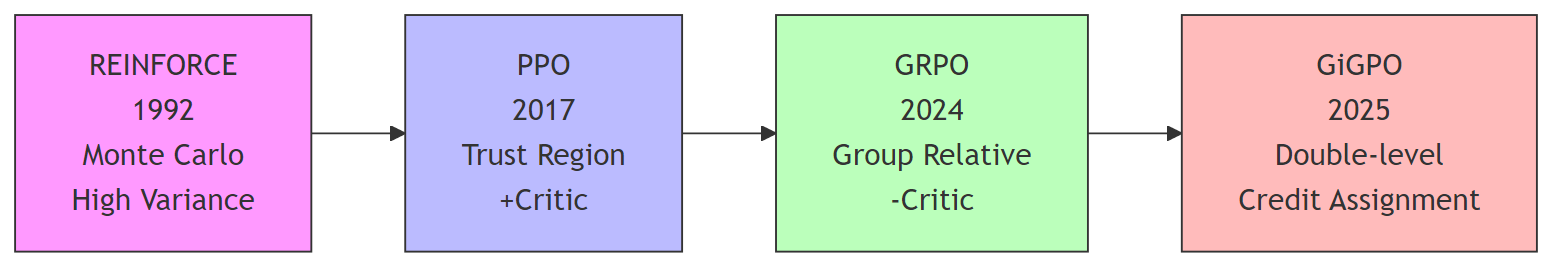

1. Historical Trajectory

Core Tension: Unbiased high-variance Monte Carlo → Biased low-variance bootstrapping → Critic-free relative estimation → Fine-grained credit decomposition

2. REINFORCE: The Monte Carlo Foundation

Problem: Direct policy gradient via likelihood ratio suffers from extreme variance.

$$ \nabla_\theta J = \operatorname{E}{\pi\theta}\left[\sum_{t} G_t \nabla_\theta \log \pi_\theta(a_t \mid s_t)\right] $$

Challenge: $G_t = \sum_{k=t}^T \gamma^{k-t}r_k$ has variance $O(T)$. Unstable for long episodes.

Solution Attempt: Baseline subtraction $G_t - b(s_t)$, where $b(s_t) \approx V^{\pi}(s)$.

• Reduces variance but introduces the need for value approximation, transitioning toward Actor-Critic.

Insight: The first principle—direct optimization without value approximation—remains theoretically pure but practically constrained by sample efficiency and high variance.

Improved Version:

• REINFORCE++: Stabilizing Critic-Free Policy Optimization with Global Advantage Normalization arXiv:2501.03262

3. [[A2C (Advantage Actor-Critic)]] : Bridging Monte Carlo and Bootstrapping

Position: Synchronous Actor-Critic architecture that bridges REINFORCE’s Monte Carlo methods and PPO’s advanced optimization.

Core Mechanism:

• Actor: Policy network $\pi_\theta(a|s)$ generating actions
• Critic: Value network $V_\phi(s)$ estimating state values to reduce variance

Advantage Estimation: $$\hat{A}t = \sum{k=0}^{n-1}\gamma^k r_{t+k} + \gamma^n V_\phi(s_{t+n}) - V_\phi(s_t)$$

Key Improvements over REINFORCE:

• Bootstrapping: n-step TD replaces full Monte Carlo returns, enabling online updates without waiting for episode termination
• Variance Reduction: Using $V(s)$ as baseline provides lower variance than REINFORCE’s simple mean baseline
• Shared Architecture: Feature extraction layers shared between Actor and Critic improve sample efficiency

Evolutionary Role: Establishes the Actor-Critic paradigm (shared parameters, advantage estimation) that becomes standard in PPO and subsequent methods.

4. [[PPO (Proximal Policy Optimization)]] : Trust Region via First-Order Approximation

Problem: REINFORCE requires fresh samples (on-policy). TRPO provides monotonic improvement but uses expensive second-order Fisher information. A2C lacks explicit constraints on policy updates.

Solution: Clipped surrogate objective achieving soft trust region: $$\mathcal{L}^{CLIP}(\theta) = \mathbb{E}_t\left[\min\left(\rho_t(\theta)\hat{A}_t, \text{clip}(\rho_t, 1-\epsilon, 1+\epsilon)\hat{A}_t\right)\right]$$

Key Innovation: Importance sampling ($\rho_t = \pi_\theta/\pi_{\theta_{old}}$) enables data reuse (multiple epochs), while clipping prevents destructive policy updates.

Cost: Requires Critic network $V_\phi(s)$ for advantage estimation. Memory and computation overhead scales with model size, becoming prohibitive for LLMs.

5. [[PPO for LLM Post-Training (RLHF)]] : RLHF Architecture

Paradigm Shift: From traditional RL (pixel/vector states, environment rewards) to LLM post-training (text sequences, reward models, KL constraints).

Four-Component Architecture:

1. Actor: LLM generating tokens $\pi_\theta(t|c)$
2. Reward Model (RM): Frozen preference model providing scalar rewards
3. Reference Model (Ref): Frozen SFT checkpoint for KL divergence anchoring
4. Critic: Value network estimating state values for GAE

LLM-Specific Adaptations:

• Sparse Rewards: Only EOS token receives RM score; intermediate tokens receive KL penalty only
• Per-Token KL Penalty: $r_t^{\text{total}} = r_t - \beta \log\frac{\pi_\theta}{\pi_{\text{ref}}}$
• Length Handling: Variable sequence lengths with padding masks and response truncation

Challenges: 4x model memory overhead (Actor+Critic+RM+Ref), reward hacking, length bias, training instability requiring gradient clipping and adaptive KL.

Improved Version:

• Back to Basics: Revisiting REINFORCE Style Optimization for Learning from Human Feedback in LLMs arXiv:2402.14740

An apparent digression - [[DPO (Direct Preference Optimization)]] : Offline Preference Optimization via Implicit Reward Modeling

Problem: PPO-LLM architecture requires four concurrent models (Actor, Critic, Reward Model, Reference), incurring prohibitive memory overhead and training instability (reward hacking, length bias).

Theoretical Foundation: Under the Bradley-Terry preference model $P(y_w \succ y_l | x) = \sigma(r(x,y_w) - r(x,y_l))$, the optimal policy $\pi^$ possesses a closed-form solution: $$\pi^(y|x) = \frac{1}{Z(x)} \pi_{\text{ref}}(y|x) \exp\left(\frac{1}{\beta}r(x,y)\right)$$

Reparameterization Trick: Eliminating explicit reward modeling by expressing $r$ via policy ratios: $$r_{\text{DPO}}(x,y) = \beta \log\frac{\pi_\theta(y|x)}{\pi_{\text{ref}}(y|x)}$$

Loss Function (negative log-likelihood of preference distribution): $$\mathcal{L}{\text{DPO}}(\theta) = -\mathbb{E}{(x,y_w,y_l)\sim\mathcal{D}}\left[\log\sigma\left(\beta \log\frac{\pi_\theta(y_w|x)}{\pi_{\text{ref}}(y_w|x)} - \beta \log\frac{\pi_\theta(y_l|x)}{\pi_{\text{ref}}(y_l|x)}\right)\right]$$

Evolutionary Significance: DPO eliminates the Critic network and explicit reward modeling, foreshadowing GRPO’s critic-free paradigm. It shifts the optimization from online credit assignment to offline preference classification, establishing the foundational pattern of replacing learned components with algorithmic mechanisms (closed-form reparameterization) to achieve scalability in large model alignment.

Improved Version:

• Why DPO is a Misspecified Estimator and How to Fix It arXiv:2510.20413

6. [[GRPO (Group Relative Policy Optimization)]] : Eliminating the Critic via Group Relativity

Problem: In LLM reasoning, training a Critic at scale (7B/70B parameters) is prohibitive. Dense reward signals are unavailable; only final outcomes (0/1) are verifiable.

Solution: Replace $V(s)$ with group statistics. For query $q$, sample $G$ outputs ${o_1,…,o_G}$: $$A_i = \frac{r_i - \mu}{\sigma + \epsilon}, \quad \mu = \frac{1}{G}\sum_{j=1}^G r_j$$

Mechanism: Z-score normalization within group provides relative quality signal without parameter learning. All tokens in response $o_i$ share advantage $A_i$.

Connection: Returns to REINFORCE’s Critic-free spirit, but stabilizes via cross-sample comparison rather than baseline subtraction. Eliminates the Critic network entirely, reducing memory from 3× to 2× (Actor+Ref only).

Improved Version:

• Uncalibrated Reasoning: GRPO Induces Overconfidence for Stochastic Outcomes arXiv:2508.11800
• Group Sequence Policy Optimization arXiv:2507.18071

7. GiGPO Part 1: Problem and Insight

Problem: GRPO assigns uniform credit to all tokens in a trajectory (trajectory-level advantage). In multi-step agents (50+ steps, sparse rewards), early actions causing late failures receive no specific penalty, leading to poor credit assignment in long-horizon tasks.

Key Insight: In multi-trajectory rollouts from the same initial state, different trajectories revisit identical environment states (e.g., same webpage, same room). These shared states serve as “anchor points” for fine-grained comparison without additional rollouts.

Level 1 (Episode-Level): $$A^E(\tau_i) = \frac{R(\tau_i) - \mu_{\text{episodes}}}{F_{\text{norm}}}$$ Provides stable long-term signal encouraging coherent trajectory behavior.

8. GiGPO Part 2: Step-Level Decomposition

Level 2 (Step-Level): For anchor states $\tilde{s}$ visited by multiple trajectories, aggregate actions and returns: $$G^S(\tilde{s}) = {(a_t^{(i)}, R_t^{(i)}) \mid s_t^{(i)} = \tilde{s}}$$

Micro-Advantage Calculation: $$A^S(a_t^{(i)}) = \frac{R_t^{(i)} - \text{mean}{R_t^{(j)} \in G^S(\tilde{s})}}{F_{\text{norm}}}$$

Combined Advantage: $$A(a_t) = A^E(\tau) + \omega \cdot A^S(a_t)$$

Algorithmic Properties:

• No Additional Cost: Requires no Critic network, no extra rollouts (0.01s/iteration overhead)
• Dynamic Grouping: Group sizes evolve from large (early training, agents stuck in loops) to concentrated (late training, stable strategies)
• Graceful Degradation: Without repeated states ($A^S=0$), automatically reduces to GRPO

Results: ALFWorld (+13.3% over GRPO), WebShop (+10.6%), Search-Augmented QA (3B model surpasses Search-R1).

Related work:

• SPA-RL: Reinforcing LLM Agents via Stepwise Progress Attribution arXiv:2505.20732
• Information Gain-based Policy Optimization: A Simple and Effective Approach for Multi-Turn LLM Agents arXiv:2510.14967

9. Comparative Analysis: Evolutionary Tradeoffs

Why GRPO/GiGPO over similar RLOO?: DeepSeek-R1 demonstrated scalability. The group-relative principle existed, but the marriage with verifiable rewards and specific architectural optimizations made these methods visible.

10. Core Principles and Connections

Axis 1: Sample Efficiency vs. Implementation Complexity

• REINFORCE → A2C/PPO: Importance sampling and bootstrapping enable off-policy data reuse, but introduce Critic networks and multi-epoch training complexity
• PPO → GRPO: Eliminates $V_\phi$ by shifting from temporal bootstrapping (TD) to ensemble comparison (group statistics), exploiting verifiable rewards in LLM reasoning without value approximation

Axis 2: Granularity of Credit Assignment

• Trajectory-level (GRPO): Uniform advantage $A_i$ assigned to all tokens; stable but coarse for long-horizon tasks with sparse rewards
• Step-level (GiGPO): Fine-grained advantage $A^S(a_t)$ via state recurrence; achieves fine-grained credit without additional rollouts
• Token-level (PPO-LLM): Per-token value estimation provides maximum granularity but requires prohibitive memory overhead for large models

Axis 3: Statistical Bias vs. Variance Reduction

• Unbiased Estimators: REINFORCE and RLOO maintain theoretical convergence via pure Monte Carlo; suffer from $O(T)$ variance in long episodes
• Biased Estimators: GRPO/GiGPO introduce bias through finite-group normalization ($\mu, \sigma$ over $G$ samples) but achieve orders-of-magnitude variance reduction, enabling practical training at scale
• Tradeoff Principle: In high-dimensional LLM action spaces, controlled bias from ensemble estimation is preferable to variance-induced instability from sparse returns

Axis 4: Memory Footprint vs. Sample Multiplicity

• Architecture Efficiency: PPO-LLM requires 4× model memory (Actor+Critic+RM+Ref); GRPO/GiGPO reduces to 2× (Actor+Ref only)
• Sample Overhead: Critic-free methods require $G$ rollouts per query ($G \geq 4$ typically) to estimate group statistics; trade memory for parallel sampling
• Computational Neutrality: GiGPO’s state-matching adds 0.01s/iteration overhead despite fine-grained decomposition, preserving training throughput

The Critic Elimination Pattern

When function approximation becomes prohibitively expensive (7B+ parameters), algorithmic mechanisms replace learned components:

$$\text{Learned Critic } V_\phi(s) \xrightarrow{\text{Group Statistics}} \frac{1}{G}\sum_{j=1}^G R(\tau_j)$$

$$\text{Temporal Bootstrapping (TD)} \xrightarrow{\text{State Recurrence}} \text{Cross-trajectory comparison}$$

Evolutionary Pendulum: REINFORCE (no Critic) $\rightarrow$ Actor-Critic (Critic required) $\rightarrow$ GRPO/GiGPO (Critic eliminated via algorithmic design)

Persistent Pattern: As model scale increases, learned value networks are progressively replaced by computational mechanisms (group comparison, clipping, state-anchoring) to maintain scalability while preserving optimization stability.

11. Questions

• Latent Information Exploitation.
• Test Time Scaling / Training.
• Step level gradient update.
• Multi-Turn Temporal composition Flow-GRPO (AgentFlow)
• Turn-level abstraction (MDP compression)
• clipping : Clip-Higher (DAPO) ,CISPO (Clipped IS-weight Policy Optimization),RSPO (Router-Shift Policy Optimization)

Thank You and Further Read

• REINFORCE++: Stabilizing Critic-Free Policy Optimization with Global Advantage Normalization arXiv:2501.03262
• Why DPO is a Misspecified Estimator and How to Fix It arXiv:2510.20413
• Uncalibrated Reasoning: GRPO Induces Overconfidence for Stochastic Outcomes arXiv:2508.11800
• Back to Basics: Revisiting REINFORCE Style Optimization for Learning from Human Feedback in LLMs arXiv:2402.14740
• DAPO: An Open-Source LLM Reinforcement Learning System at Scale arXiv:2503.14476
• Group Sequence Policy Optimization arXiv:2507.18071
• SPA-RL: Reinforcing LLM Agents via Stepwise Progress Attribution arXiv:2505.20732
• [[Information Gain-based Policy Optimization - A Simple and Effective Approach for Multi-Turn LLM Agents]]arXiv:2510.14967
• EvoTest: Evolutionary Test-Time Learning for Self-Improving Agentic Systems
• Heuristics-Considered-Harmful-RL-With-Random-Rewards-Should-Not-Make-LLMs-Reason

P.S. From a simple presentation slide made by marp in early learing stage, feel sorry for mistakes and misunderstanding
